toolbox.plot Documentation and API reference

Full API documentation of the toolbox.plot Python module.

Create matplotlib/plotly hybrid plots with a few lines of code.

It combines the best of the matplotlib and the plotly worlds through a unified, flat API. All the necessary boilerplate code is contained in this module.

Currently supported:

  • line plots (scatter)

  • line fills

  • histograms

  • heatmaps

  • boxplot

  • linear regression

  • text annotations

  • 2D subplots

  • color cycling

Examples:

>>> toolbox.plot.line([0,4,6,7], [1,2,4,8])

>>> toolbox.plot.line(
...     [0,4,6,7],
...     [1,2,4,8],
...     interactive=False,
...     title="matploblib static figure",
...     xlabel="X",
...     ylabel="Y",
... )
[matplotlib plot "Normally distributed Noise]
>>> @tb.plot.magic_plot
... def plot_lines(samples=100, n=10, label="sigma={0}, mu={1}", fig=None):
...     """
...     Plot a line!
...
...     Parameters
...     ----------
...     samples: int, optional
...         Default 100
...     n: int, optional
...         Number of traces.
...         Default: 10
...     label: str, optional
...         Trace label. May contain {0} for sigma and {1} for mu values.
...         Default: "sigma={0}, mu={1}"
...     [decorator parameters will be added automatically]
...     """
...     for i in range(1, n+1):
...         fig.add_line(
...             np.random.normal(i*10,i,samples), label=label.format(i, i*10))

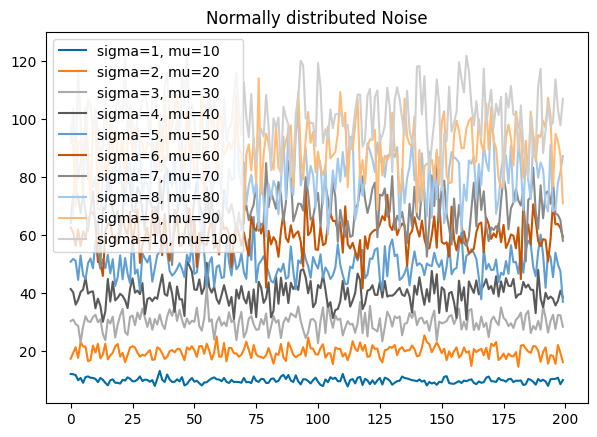

>>> plot_lines(samples=200, title="Normally distributed Noise")

>>> plot_lines(
...     samples=200, interactive=False, title="Normally distributed Noise")
[matplotlib plot "Normally distributed Noise]

The core Plot class

class toolbox.plot.Plot(interactive=True, rows=1, cols=1, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None)

Bases: NotebookInteraction

Create matplotlib/plotly hybrid plots with a few lines of code.

It combines the best of the matplotlib and the plotly worlds through a unified, flat API. All the necessary boilerplate code is contained in this module.

Currently supported:

  • line plots (scatter)

  • line fills

  • histograms

  • heatmaps

  • boxplot

  • linear regression

  • text annotations

  • 2D subplots

  • color cycling

Parameters:
interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

Methods

__call__(*args, **kwargs)

Calls the self.show() or self.plot() method.

add_boxplot(x[, horizontal, label, ...])

Draw a boxplot.

add_fill(x, y1[, y2, label, show_legend, ...])

Draw a fill between two y lines.

add_heatmap(data[, lim, aspect, invert_x, ...])

Draw a heatmap.

add_hist([x, y, bins, density, label, ...])

Draw a histogram.

add_line(x[, y, label, show_legend, color, ...])

Draw a line plot.

add_regression(x[, y, p, linspace])

Draw a linear regression plot.

add_text(x, y, text[, horizontal_alignment, ...])

Draw text.

digest_color([color, alpha, increment])

Parse color with matplotlib.colors to a rgba array.

get_cycle_color([increment, i])

Retrieves the next color in the color cycle.

post_process([pty_update_layout, ...])

Finish the plot.

save(path[, export_format, print_confirm])

Save the plot.

show()

Show the plot.
JS_RENDER_WARNING = ''
add_boxplot(x, horizontal=False, label=None, show_legend=None, color=None, color_median='black', opacity=None, notch=True, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw a boxplot.

Parameters:
x: array or sequence of vectors

Data to build boxplot from.

horizontal: bool, default: False

Show boxplot horizontally.

label: tuple of strs, optional

Trace labels for legend.

color: tuple of strs, optional

Fill colors.

Can be hex, rgb(a) or any named color that is understood by matplotlib.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

color_median: color, default: “black”

MPL only. Color of the median line.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the boxplot core method.

add_fill(x, y1, y2=None, label=None, show_legend=False, mode='lines', color=None, opacity=0.5, line_width=0.0, line_opacity=1.0, line_color=None, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw a fill between two y lines.

Parameters:
x: array-like
y1, y2: array-like, optional

If only x and y1 is defined, it will be assumed as y1 and y2, and x will be the index, starting from 0.

label: str, optional

Trace label for legend.

color, line_color: str, optional

Fill and line color.

Can be hex, rgb(a) or any named color that is understood by matplotlib. If line_color is undefined, the the fill color will be used.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity, line_opacity: float, default: 0.5

Opacity (=alpha) of the fill.

Set to None to use a value provided with the color argument.

line_width: float, default: 0.

Boundary line width.

row, col: int, default: 0

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the fill core method.

add_heatmap(data, lim=(None, None), aspect=1, invert_x=False, invert_y=False, cmap='rainbow', cmap_under=None, cmap_over=None, cmap_bad=None, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw a heatmap.

Parameters:
data: 2D array-like

2D data to show heatmap.

lim: list/tuple of 2x float, optional

Lower and upper limits of the color map.

aspect: float, default: 1

Aspect ratio of the axes.

invert_x, invert_y: bool, optional

Invert the axes directions. Default: False

cmap: str, default: “rainbow”

Color map to use. https://matplotlib.org/stable/gallery/color/colormap_reference.html Note: Not all cmaps are available for both libraries, and may differ slightly.

cmap_under, cmap_over, cmap_bad: str, optional

Colors to display if under/over range or a pixel is invalid, e.g. in case of np.nan. cmap_bad is not available for interactive plotly plots.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the heatmap core method.

add_hist(x=None, y=None, bins=None, density=False, label=None, show_legend=None, color=None, opacity=None, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw a histogram.

Parameters:
x: array-like

Histogram data.

bins: int, optional

Number of bins. If undefined, plotly/matplotlib will detect automatically. Default: None

label: str, optional

Trace label for legend.

color: str, optional

Trace color. Can be hex, rgb(a) or any named color that is understood by matplotlib.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, default: 0

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the hist core method.

add_line(x, y=None, label=None, show_legend=None, color=None, opacity=None, linewidth=None, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw a line plot.

Parameters:
x: array-like
y: array-like, optional

If only x is defined, it will be assumed as y. If a pandas Series is provided, the index will be taken as x. Else if a pandas DataFrame is provided, the method call is looped for each column. Else x will be an increment, starting from 0. If a 2D numpy array is provided, the method call is looped for each column.

label: str, optional

Trace label for legend.

show_legend: bool, optional

Whether to show the label in the legend.

By default, it will be shown if a label is defined.

color: str, optional

Trace color.

Can be hex, rgb(a) or any named color that is understood by matplotlib.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the line core method.

add_regression(x, y=None, p=0.05, linspace=101, **kwargs)

Draw a linear regression plot.

Parameters:
x: array-like or `toolbox.arraytools.LinearRegression` instance

X axis data, or pre-existing LinearRegression instance.

y: array-like, optional

Y axis data. If a LinearRegression instance is provided for x, y can be omitted and will be ignored.

p: float, default: 0.05

p-value.

linspace: int, default: 101

Number of data points for linear regression model and conficence and prediction intervals.

kwargs:

Keyword arguments for toolbox.arraytools.LinearRegression.plot.

add_text(x, y, text, horizontal_alignment='center', vertical_alignment='center', text_alignment=None, data_coords=None, x_data_coords=True, y_data_coords=True, color='black', opacity=None, row=0, col=0, kwargs_pty=None, kwargs_mpl=None, **kwargs)

Draw text.

Parameters:
x, y: float

Coordinates of the text.

text: str

Text to add.

horizontal_alignment, vertical_alignment: str, default: “center”

Where the coordinates of the text box anchor.

Options for horizontal_alignment:

  • “left”

  • “center”

  • “right”

Options for vertical_alignment:

  • “top”

  • “center”

  • “bottom”

text_alignment: str, optional

Set how text is aligned inside its box.

If left undefined, horizontal_alignment will be used.

data_coords: bool, default: True

Whether the x, y coordinates are provided in data coordinates or in relation to the axes.

If set to False, x, y should be in the range (0, 1). If data_coords is set, it will override x_data_coords and y_data_coords.

x_data_coords, y_data_coords: bool, default: True

PTY only. Specify the anchor for each axis separate.

color: str, default: “black”

Trace color. Can be hex, rgb(a) or any named color that is understood by matplotlib.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the line core method.

digest_color(color=None, alpha=None, increment=1)

Parse color with matplotlib.colors to a rgba array.

Parameters:
color: any color format matplotlib accepts, optional

E.g. “blue”, “#0000ff” If None is provided, the next one from COLOR_CYCLE will be picked.

alpha: float, optional

Set alpha / opacity. Overrides alpha contained in color input. Default: None (use the value contained in color or default to 1)

increment: int, optional

If a color from the cycler is picked, increase the cycler by this increment.

get_cycle_color(increment=1, i=None)

Retrieves the next color in the color cycle.

Parameters:
increment: int, optional

If the same color should be returned the next time, pass 0. To jump the next color, pass 2. Default: 1

i: int, optional

Get a fixed index of the color cycle instead of the next one. This will not modify the regular color cycle iteration.

Returns:
color: str

HEX color, with leading hashtag

post_process(pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None)

Finish the plot.

Parameters:
Note: If not provided, the parameters given on init will be used.
pty_update_layout: dict, optional

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over Default: None

pty_custom_func: function, optional

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig. Example: >>> def pty_custom_func(fig): >>> fig.do_stuff() >>> return fig Default: None

mpl_custom_func: function, optional

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax. Example: >>> def mpl_custom_func(fig, ax): >>> fig.do_stuff() >>> ax.do_more() >>> return fig, ax Default: None

save(path, export_format=None, print_confirm=True, **kwargs)

Save the plot.

Parameters:
path: str, pathlib.Path, bool

May point to a directory or a filename. If only a directory is provided (or True for local directory), the filename will automatically be generated from the plot title.

export_format: str, optional

If the format is not indicated in the file name, specify a format.

print_confirm: bool, optional

Print a confirmation message where the file has been saved. Default: True

Returns:
pathlib.Path

Path to the exported file.

show()

Show the plot.

One-line Plotting

plot.line(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a line plot.

Parameters:
x: array-like
y: array-like, optional

If only x is defined, it will be assumed as y. If a pandas Series is provided, the index will be taken as x. Else if a pandas DataFrame is provided, the method call is looped for each column. Else x will be an increment, starting from 0. If a 2D numpy array is provided, the method call is looped for each column.

label: str, optional

Trace label for legend.

show_legend: bool, optional

Whether to show the label in the legend.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

By default, it will be shown if a label is defined.

color: str, optional

Trace color.

Can be hex, rgb(a) or any named color that is understood by matplotlib.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the line core method.

plot.hist(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a histogram.

Parameters:
x: array-like

Histogram data.

bins: int, optional

Number of bins. If undefined, plotly/matplotlib will detect automatically. Default: None

label: str, optional

Trace label for legend.

color: str, optional

Trace color. Can be hex, rgb(a) or any named color that is understood by matplotlib.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, default: 0

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the hist core method.

plot.boxplot(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a boxplot.

Parameters:
x: array or sequence of vectors

Data to build boxplot from.

horizontal: bool, default: False

Show boxplot horizontally.

label: tuple of strs, optional

Trace labels for legend.

color: tuple of strs, optional

Fill colors.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

Can be hex, rgb(a) or any named color that is understood by matplotlib.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

color_median: color, default: “black”

MPL only. Color of the median line.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the boxplot core method.

plot.heatmap(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a heatmap.

Parameters:
data: 2D array-like

2D data to show heatmap.

lim: list/tuple of 2x float, optional

Lower and upper limits of the color map.

aspect: float, default: 1

Aspect ratio of the axes.

invert_x, invert_y: bool, optional

Invert the axes directions. Default: False

cmap: str, default: “rainbow”

Color map to use. https://matplotlib.org/stable/gallery/color/colormap_reference.html Note: Not all cmaps are available for both libraries, and may differ slightly.

cmap_under, cmap_over, cmap_bad: str, optional

Colors to display if under/over range or a pixel is invalid, e.g. in case of np.nan. cmap_bad is not available for interactive plotly plots.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the heatmap core method.

plot.regression(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a linear regression plot.

Parameters:
x: array-like or `toolbox.arraytools.LinearRegression` instance

X axis data, or pre-existing LinearRegression instance.

y: array-like, optional

Y axis data. If a LinearRegression instance is provided for x, y can be omitted and will be ignored.

p: float, default: 0.05

p-value.

linspace: int, default: 101

Number of data points for linear regression model and conficence and prediction intervals.

kwargs:

Keyword arguments for toolbox.arraytools.LinearRegression.plot.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance
plot.fill(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw a fill between two y lines.

Parameters:
x: array-like
y1, y2: array-like, optional

If only x and y1 is defined, it will be assumed as y1 and y2, and x will be the index, starting from 0.

label: str, optional

Trace label for legend.

color, line_color: str, optional

Fill and line color.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance

Can be hex, rgb(a) or any named color that is understood by matplotlib. If line_color is undefined, the the fill color will be used.

Default: color is retrieved from Plot.digest_color, which cycles through COLOR_CYCLE.

opacity, line_opacity: float, default: 0.5

Opacity (=alpha) of the fill.

Set to None to use a value provided with the color argument.

line_width: float, default: 0.

Boundary line width.

row, col: int, default: 0

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the fill core method.

plot.text(*, interactive=True, rows=1, cols=1, fig=None, skip_post_process=False, title=None, xlabel=None, ylabel=None, xlim=None, ylim=None, shared_xaxes=False, shared_yaxes=False, column_widths=None, row_heights=None, fig_size=None, dpi=100, legend_loc=None, legend_title=None, save_fig=None, save_format=None, save_config=None, pty_update_layout=None, pty_custom_func=None, mpl_custom_func=None, **kwargs)

Draw text.

Parameters:
x, y: float

Coordinates of the text.

text: str

Text to add.

horizontal_alignment, vertical_alignment: str, default: “center”

Where the coordinates of the text box anchor.

interactive: bool, default: True

Display an interactive plotly line plot instead of the default matplotlib figure.

rows, cols: int, default: 1

Create a grid with x rows and y columns.

title: str, default: None

Plot title.

xlabel, ylabel: str or str tuple, default: None

Axis labels.

Either one title for the entire axis or one for each row/column.

xlim, ylim: tuple of 2 numbers or nested, default: None

Axis range limits.

In case of multiple rows/cols provide either:

  • a tuple

  • a tuple for each row

  • a tuple for each row containing tuple for each column.

shared_xaxes, shared_yaxes: str, default: None

Define how multiple subplots share there axes.

Options:

  • “all” or True

  • “rows”

  • “columns” or “cols”

  • None or False

column_widths, row_heights: tuple/list, default: None

Ratios of the width/height dimensions in each column/row. Will be normalised to a sum of 1.

fig_size: tuple of 2x float, optional

Figure size in pixels.

Default behavior:

  • MPL: Default figure size.

  • PLT: Responsive sizing.

dpi: int, default: 100

Plot resolution.

legend_loc: str, optional

MATPLOTLIB ONLY.

Default:

  • In case of 1 line: None

  • In case of >1 line: “best” (auto-detect)

legend_title: str, default: None

MPL: Each subplot has its own legend, so a 2d list in the shape of the subplots may be provided.

PTY: Just provide a str.

save_fig: str or pathlib.Path, default: None

Provide a path to export the plot.

Possible formats: png, jpg, svg, html, …

The figure will only be saved on calling the instance’s .post_process().

If a directory (or True for local directory) is provided, the filename will be automatically generated based on the title.

save_format: str, default: None

Provide a format for the exported plot.

pty_update_layout: dict, default: None

PLOTLY ONLY. Pass keyword arguments to plotly’s fig.update_layout(**pty_update_layout) Thus, take full control over

pty_custom_func: function, default: None

PLOTLY ONLY. Pass a function reference to further style the plotly graphs. Function must accept fig and return fig.

>>> def pty_custom_func(fig):
...     fig.do_stuff()
...     return fig
mpl_custom_func: function, default: None

MATPLOTLIB ONLY. Pass a function reference to further style the matplotlib graphs. Function must accept fig, ax and return fig, ax.

Note: ax always has row and col coordinates, even if the plot is just 1x1.

>>> def mpl_custom_func(fig, ax):
...     fig.do_stuff()
...     ax[0, 0].do_more()
...     return fig, ax
Returns:
toolbox.plot.Plot instance
Options for horizontal_alignment:

  • “left”

  • “center”

  • “right”

Options for vertical_alignment:

  • “top”

  • “center”

  • “bottom”

text_alignment: str, optional

Set how text is aligned inside its box.

If left undefined, horizontal_alignment will be used.

data_coords: bool, default: True

Whether the x, y coordinates are provided in data coordinates or in relation to the axes.

If set to False, x, y should be in the range (0, 1). If data_coords is set, it will override x_data_coords and y_data_coords.

x_data_coords, y_data_coords: bool, default: True

PTY only. Specify the anchor for each axis separate.

color: str, default: “black”

Trace color. Can be hex, rgb(a) or any named color that is understood by matplotlib.

opacity: float, optional

Opacity (=alpha) of the fill.

By default, fallback to alpha value provided with color argument, or 1.

row, col: int, optional

If the plot contains a grid, provide the coordinates.

Attention: Indexing starts with 0!

kwargs_pty, kwargs_mpl, **kwargs: optional

Pass specific keyword arguments to the line core method.

magic_plot decorators

plot.magic_plot(doc_decorator=None)

Plot generator wrapper.

Your function feeds the data, the wrapper gives control over the plot to the user.

Parameters:
doc_decorator: str, optional

Append the docstring with the decorated parameters.

By default, the global variable DOCSTRING_DECORATOR will be used.

Examples

>>> @magic_plot
... def line(
...     data,
...     fig,
...     **kwargs,
... ):
...     fig.add_line(data)
...
... line([0,4,6,7], title="Plot title", interactive=False)
[matplotlib figure, "Plot title"]
plot.magic_plot_preset(**kwargs_preset)

Plot generator wrapper, preconfigured.

Your function feeds the data, the wrapper gives control over the plot to the user.

Parameters:
doc_decorator: str, optional

Append the docstring with the decorated parameters.

By default, the global variable DOCSTRING_DECORATOR will be used.

**kwargs_preset: dict

Define presets for any keyword arguments accepted by Plot.

Setting strict_preset=True prevents overriding the preset.

Examples

>>> @magic_plot_preset(
...     title="Data view",
...     interactive=False,
...     strict_preset=False,
... )
... def line(
...     data,
...     fig,
...     **kwargs,
... ):
...     fig.add_line(data)
...
... line([0,4,6,7], xlabel="X axis")
[matplotlib figure, "Data view"]

NotebookInteraction Parent Class

class toolbox.plot.NotebookInteraction

Bases: object

Parent class for automatic display in Jupyter Notebook.

Calls the child’s show()._repr_html_() for automatic display in Jupyter Notebooks.

Methods

__call__(*args, **kwargs)

Calls the self.show() or self.plot() method.
JS_RENDER_WARNING = ''

ShowDataArray, ShowDataset

class toolbox.plot.ShowDataArray(data, default_sel=None, default_isel=None)

Bases: NotebookInteraction

Automatically display a xarray.DataArray in a Jupyter notebook.

If the DataArray has more than two dimensions, provide default sel or isel selectors to reduce to two dimensions.

Parameters:
data: xarray.DataArray
default_sel: dict, optional

Select a subset of a the DataArray by label. Can be a slice or the type of the dimension.

default_isel: dict, optional

Select a subset of a the DataArray by integer count. Can be a integer slice or an integer.

Methods

__call__(*args, **kwargs)

Calls the self.show() or self.plot() method.

plot(*args[, sel, isel])

Show the DataArray.
JS_RENDER_WARNING = ''
plot(*args, sel=None, isel=None, **kwargs)

Show the DataArray.

Parameters:
sel: dict, optional

Select a subset of a the DataArray by label. Can be a slice or the type of the dimension. If None, default_sel will be used.

isel: dict, optional

Select a subset of a the DataArray by integer count. Can be a integer slice or an integer. If None, default_isel will be used.

Returns:
Plot.fig
class toolbox.plot.ShowDataset(data, default_var=None, default_sel=None, default_isel=None)

Bases: ShowDataArray

Automatically display a xarray.Dataset in a Jupyter notebook.

Provide a default variable to display from the Dataset for automatic display. If the Dataset has more than two dimensions, provide default sel or isel selectors to reduce to two dimensions.

Parameters:
data: xarray.DataArray
default_var: str, optional

Select the variable of the Dataset to display by label.

default_sel: dict, optional

Select a subset of a the Dataset by label. Can be a slice or the type of the dimension.

default_isel: dict, optional

Select a subset of a the Dataset by integer count. Can be a integer slice or an integer.

Methods

__call__(*args, **kwargs)

Calls the self.show() or self.plot() method.

plot(*args[, var, sel, isel])

Show a variable of the Dataset.
JS_RENDER_WARNING = ''
plot(*args, var=None, sel=None, isel=None, **kwargs)

Show a variable of the Dataset.

Parameters:
var: str, optional

Select the variable of the Dataset to display by label. If None, default_var will be used.

sel: dict, optional

Select a subset of a the DataArray by label. Can be a slice or the type of the dimension. If None, default_sel will be used.

isel: dict, optional

Select a subset of a the DataArray by integer count. Can be a integer slice or an integer. If None, default_isel will be used.

Returns:
Plot.fig
